Mapping primer#

There are two major steps involved in to the mapping implemented by the Mapper class: The Scoring procedure (see Mapper.compute_scores) and the subsequent Matching procedure (see Mapper.to_directional_mapping). The two are automatically combined when using the Mapper.apply-function, though they may be invoked separately by users.

Scoring procedure#

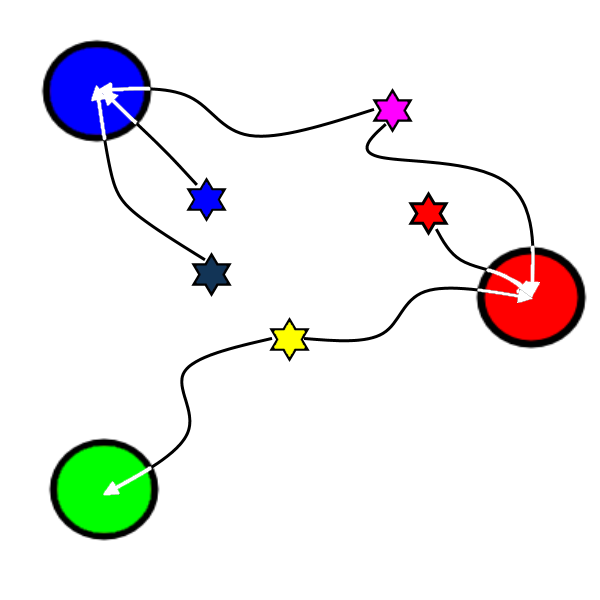

../_images/mapping.png — Colours mapped by
spectral distance (RGB).
#

The steps presented here is the hierarchical order. It does not necessarily represent the actual order in which things are computed.

Runtime overrides (type: UserOverrideFunction); set score = ∞ for the desired match , and score = -∞ for others 1.
Static overrides (type: dict or InheritedKeysDict); set score = ∞ for the desired match, and score = -∞ for others 1.
Filtering (type: FilterFunction); set score = -∞ for undesirable matches only.
If there are any Heuristics (type: HeuristicScore), apply..
1. Short-circuiting (type: FilterFunction); reinterpret a FilterFunction such that the returned candidates (if any) are treated as overrides 1.
2. Aliasing (type: AliasFunction); try to improve ScoreFunction accuracy by applying heuristics to the (value, candidates) arguments.
3. Finally, select the best score at each stage (from no to all heuristics) for each pair.
Regular score (type: ScoreFunction); higher is better.

The final output of the scoring procedure is the score matrix, represented as a pandas DataFrame. Candidates are set as the columns and values are assigned to the index.

Partial mapping scores for the DVD Rental Database example.#
	store	category	customer	staff	film
film_id	0.100	0.040	0.040	0.100	1.000 ★
category_id	0.125	1.000 ★	0.222	0.042	0.040
store_id	1.000 ★	0.125	0.042	0.500	0.100
rental_date	-∞	-∞	-∞	-∞	-∞

The full mapping matrix has over 100 values, the table above contains a selection of 20. The 'rental_date' value can be seen having only negative-infinity matching scores. This is intentional; the database has no suitable table for translating dates. Mapping would’ve most likely failed regardless, but explicitly stating that 'rental_date' should not be translated (by using a filter) is more efficient.

Matching procedure#

Given precomputed match scores (see the section above), make as many matches as possible given a Cardinality restriction. These may be summarized as:

OneToOne = ‘1:1’. Each value and candidate may be used at most once.
OneToMany = ‘1:N’: Values have exclusive ownership of matched candidate(s).
ManyToOne = ‘N:1’: Ensure that as many values as possible are unambiguously mapped (i.e. to a single candidate). This is the default option for new Mapper instances.
ManyToMany = ‘M:N’: All matches above the score limit are kept.

In theory, OneToMany and ManyToOne are equally restrictive. During mapping however, the goal is usually to find matches for the values, not candidates. With that in mind, the ordering above may considered strictly decreasing in preciseness.

Debug logging#

The log messages emitted during operation are the best way to diagnose mapping issues. Logging is controlled both by the log level used, and by the enable_verbose_logging option, which is False by default.

The 'rics.mapping.Mapper.accept.details'-logger emits details about matches that were rejected in favour of the current match. Depending on the chosen cardinality, this may affect both values and candidates. Example output:

DEBUG rics.mapping.Mapper.accept: Accepted: 'b' -> 'b'; score=1.000 >= 0.1.
DEBUG rics.mapping.Mapper.accept.details: This match supersedes 4 other matches:
  'b' -> 'ab'; score=0.500 (superseded on value='b').
  'b' -> 'a'; score=0.000 < 0.1 (below threshold).
  'b' -> 'fixed'; score=0.000 < 0.1 (below threshold).
  'a' -> 'b'; score=-inf (superseded by short-circuit or override).
DEBUG rics.mapping.Mapper: Match selection with cardinality='OneToOne' completed in 0.00369605 sec.

The 'rics.mapping.Mapper.unmapped.details'-logger emits details about values that weren’t mapped to any candidates. The final action taken depends unmapped_values_action. Example output:

DEBUG rics.mapping.Mapper.unmapped.details: Could not map value='is_nice':
  'is_nice' -> 'name'; score=0.125 < 1.0 (below threshold).
  'is_nice' -> 'gender'; score=0.083 < 1.0 (below threshold).
  'is_nice' -> 'id'; score=0.000 < 1.0 (below threshold).
DEBUG rics.mapping.Mapper.unmapped: Could not map {'is_nice'} in context='humans' to any of candidates={'name', 'gender', 'id'}.

Verbose mode may emit a large number of records. Example output:

DEBUG rics.mapping.Mapper.accept: Accepted: 'a' -> 'ab'; score=inf (short-circuit or override).
DEBUG rics.mapping.filter_functions.require_regex_match: Refuse matching for name='a': Matches pattern=re.compile('.*a.*', re.IGNORECASE).
DEBUG rics.mapping.HeuristicScore: Heuristics scores for value='staff_id': ['store': 0.00 -> 0.50 (+0.50), 'payment': 0.07 -> 0.07 (+0.00), 'inventory': 0.00 -> 0.07 (+0.07), 'language': 0.00 -> 0.08 (+0.08), 'category': 0.00 -> 0.04 (+0.04), 'film': 0.05 -> 0.10 (+0.05), 'address': 0.00 -> 0.08 (+0.08), 'rental': 0.00 -> 0.08 (+0.08), 'customer_list': 0.00 -> 0.02 (+0.02), 'staff': 0.00 -> 1.00 (+1.00), 'staff_list': 0.00 -> 0.03 (+0.03), 'city': 0.00 -> 0.10 (+0.10), 'country': 0.00 -> 0.06 (+0.06), 'customer': 0.00 -> 0.04 (+0.04), 'actor': 0.00 -> 0.17 (+0.17)]
DEBUG rics.mapping.filter_functions.require_regex_match: Refuse matching for name='return_date': Does not match pattern=re.compile('.*_id$', re.IGNORECASE).

Footnotes

1(1,2,3): Exactly how other scores are adjusted depends on cardinality. The last override applied takes priority when conflicting overrides are defined.
