Mapping primer

The main entry point for mapping tasks is the rics.mapping.Mapper class.

See also

Mapping is used extensively by the (external) id-translation package suite.

There are two principal steps involved in the mapping procedure: The Step 1/2: Scoring procedure (see Mapper.compute_scores) and the subsequent Step 2/2: Matching procedure (see Mapper.to_directional_mapping). The two are automatically combined when using the Mapper.apply-function, though they may be invoked separately by users.

Hint

Setting score_function='disabled' when creating the Mapper will force override-only mode. This will require manually defined mappings to be defined for every values that should be mapped. Trying to map values without an override will raise a ScoringDisabledError in this mode.

Step 1/2: Scoring procedure

The Mapper first applies Overrides and filtering, after which the actual Score computations are performed.

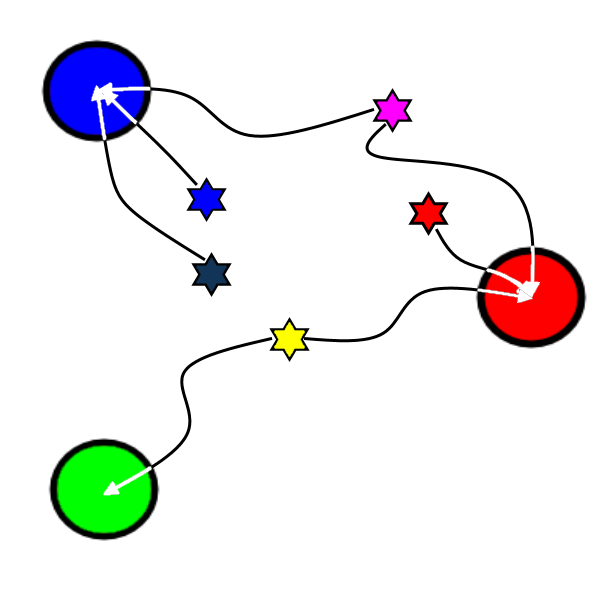

Colours mapped by
spectral distance (RGB).

Overrides and filtering

Overrides and filtering adhere to a strict hierarchy (the one presented below). Overrides take precedence over filters, and runtime overrides takes precedence over static overrides.

1. Runtime overrides (type: UserOverrideFunction); set score=∞ for the chosen candidate, and score=-∞ for others.

2. Static overrides (type: dict or InheritedKeysDict); set score=∞ for the chosen candidate, and score=-∞ for others.

3. Filtering (type: FilterFunction); set score=-∞ for undesirable matches only.

Score computations

4. Compute value-candidate match scores (type: ScoreFunction). Higher is better.

5. If there are any Heuristics (type: HeuristicScore), apply..

   1. Short-circuiting (type: FilterFunction); reinterpret a FilterFunction such that the returned candidates (if any) are treated as overrides.

   2. Aliasing (type: AliasFunction); try to improve ScoreFunction accuracy by applying heuristics to the (value, candidates)-argument pairs.

   3. Finally, select the best score at each stage (from no to all heuristics) for each pair.

The final output is a score matrix (type: pandas.DataFrame), where columns are candidates and values make up the index.

Partial mapping scores for the DVD Rental Database ID translation example.

	store	category	customer	staff	film
film_id	0.100	0.040	0.040	0.100	1.000 ★
category_id	0.125	1.000 ★	0.222	0.042	0.040
store_id	1.000 ★	0.125	0.042	0.500	0.100
rental_date	-∞	-∞	-∞	-∞	-∞

The 'rental_date'-value can be seen having only negative-infinity matching scores due to filtering.

Hint

The Translator.map_scores-method returns Name-to-source mapping scores.

Step 2/2: Matching procedure

Given precomputed match scores (see the section above), make as many matches as possible given a Cardinality restriction. These may be summarized as:

• OneToOne = ‘1:1’: Each value and candidate may be used at most once.

• OneToMany = ‘1:N’: Values have exclusive ownership of matched candidate(s).

• ManyToOne = ‘N:1’: Ensure that as many values as possible are unambiguously mapped (i.e. to a single candidate). This is the default option for new Mapper instances.

• ManyToMany = ‘M:N’: All matches above the score limit are kept.

In theory, OneToMany and ManyToOne are equally restrictive. During mapping however, the goal is usually to find matches for values, not candidates. With that in mind, the ordering above may be considered strictly decreasing in preciseness.

Conflict resolution

When a single match out of multiple viable options must be chosen due to cardinality restrictions, priority is determined by the iteration order of values and candidates. The first value will prefer the first candidate, and so on. This logic does not consider future matches.

>>> mapper = Mapper(cardinality='1:1', score_function=lambda value, *_: [1, 0] if value == 'v1' else [1, 1])
>>> mapper.compute_scores(['v0', 'v1'], ['c0', 'c1'])
candidates   c0   c1
values
v0          1.0  1.0
v1          0.0  1.0
>>> mapper.apply(['v0', 'v1'], ['c0', 'c1']).flatten()
{'val0': 'cand0'}

Notice that val1 was left without a match, even though it could’ve been assigned to cand0 if the equally viable matching val0 → cand1 had been chosen first.

Note

As of version 3.0.0, a score matrix like this will raise AmbiguousScoreError for any cardinality that requires a single candidate (including 1:1).

Troubleshooting

Unmapped values are allowed by default. If mapping failure is not an acceptable outcome for your application, initialize the Mapper with unmapped_values_action='raise' to ensure that an error is raised for unmapped values, along with more detailed log messages which are emitted on the error level.

Mapper .details-messages

The 'rics.mapping.Mapper.accept.details' and 'rics.mapping.Mapper.unmapped.details' loggers emit per-combination mapping scores when matches are made (accept.details), or when values are left without a match (unmapped.details). Records from these loggers are always emitted on the debug-level.

The 'rics.mapping.Mapper.accept.details'-logger lists matches that were rejected in favour of the current match.

rics.mapping.Mapper.accept: Accepted: 'v0' -> 'c0'; score=1.000 >= 1.0.
rics.mapping.Mapper.accept.details: This match supersedes 2 other matches:
    'v0' -> 'c1'; score=1.000 (superseded on value='v0').
    'v1' -> 'c0'; score=1.000 (superseded on candidate='c0').

The 'rics.mapping.Mapper.unmapped.details'-logger explains why values were left unmapped.

 rics.mapping.Mapper.unmapped.details: Could not map value='v1':
     'v1' -> 'c0'; score=1.000 (superseded on candidate='c0': 'v0' -> 'c0'; score=1.000).
     'v1' -> 'c1'; score=0.000 < 1.0 (below threshold).

Unlike the unmapped.details-logger, the level of the records emitted by its parent (the unmapped-logger) is determined by the Mapper.unmapped_values_action-attribute ( 'ignore' emits on the debug-level).

Verbose messages

If .details-logging is not enough, the last resort (before opening a debugger) is to enable verbose logging. The recommended way of doing this is by using the enable_verbose_debug_messages()-method, which acts as a context manager.

from rics.mapping import Mapper, support
with support.enable_verbose_debug_messages():
    Mapper(<config>).apply(<values>, <candidates>)

Verbose mode enables debug-level log messages from individual functions involved in the decision making and mapping procedure, describing the internal operation of the Mapper in great detail.

A few verbose messages.

rics.mapping.Mapper.accept: Accepted: 'a' -> 'ab'; score=inf (short-circuit or override).
rics.mapping.filter_functions.require_regex_match: Refuse matching for name='a': Matches pattern=re.compile('.*a.*', re.IGNORECASE).
rics.mapping.HeuristicScore: Heuristics scores for value='staff_id': ['store': 0.00 -> 0.50 (+0.50), 'payment': 0.07 -> 0.07 (+0.00), 'inventory': 0.00 -> 0.07 (+0.07), 'language': 0.00 -> 0.08 (+0.08), 'category': 0.00 -> 0.04 (+0.04), 'film': 0.05 -> 0.10 (+0.05), 'address': 0.00 -> 0.08 (+0.08), 'rental': 0.00 -> 0.08 (+0.08), 'customer_list': 0.00 -> 0.02 (+0.02), 'staff': 0.00 -> 1.00 (+1.00), 'staff_list': 0.00 -> 0.03 (+0.03), 'city': 0.00 -> 0.10 (+0.10), 'country': 0.00 -> 0.06 (+0.06), 'customer': 0.00 -> 0.04 (+0.04), 'actor': 0.00 -> 0.17 (+0.17)]
rics.mapping.filter_functions.require_regex_match: Refuse matching for name='return_date': Does not match pattern=re.compile('.*_id$', re.IGNORECASE).

To permanently enable verbose logging, initialize with enable_verbose_logging=True.
